Golden Horagram #16
#23 of The Wilson Scale Tree

2/5—5/13, levels 2 & 4
(5Phi+2)÷(13Phi+5)
= 0.3875700505
= generator angle 139.5252182°
= generator interval 465.08 cents

RingL size
(cents)		 s size
(cents)		RatioStep size
Order
5269.83 195.253-PhisLsLL
8195.25 74.581+PhiLLsLLsLs
13120.67 74.58PhiLsLssLsLssLss

Notes:

Consonant Ratio Approximated·Ring 5·Ring 8
12:7-3c @ 930c = 2 generators [7:6] 3 6
11:9-3c @344c [18:11] 0 1
5:4+5c @ 391c [8:5] 0 2

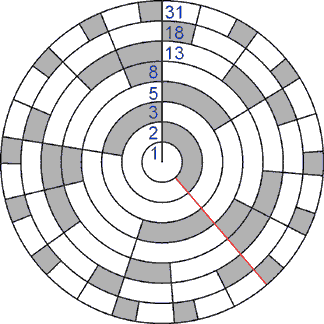

horagram

Mature rings: 3, 5, 8; 18 on out
tree route

Modes (in cents)

Ring 5
011 Alloyed - Interlaced - Mature

0 195 465 660  930
0 270 465 735 1005
0 195 465 735  930
0 270 540 735 1005
0 270 465 735  930



Ring 8
011i Alloyed - Interlaced - Mature - Improper

0 195 391 465 660 856 930 1125
0 195 270 465 660 735 930 1005
0  75 270 465 540 735 809 1005
0 195 391 465 660 735 930 1125
0 195 270 465 540 735 930 1005
0  75 270 344 540 735 809 1005
0 195 270 465 660 735 930 1125
0  75 270 465 540 735 930 1005

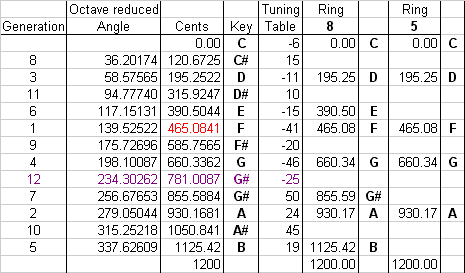

data table

MIDI files
NYA
